| A18.1828 Forensic Comparison Microscope Specification |
| Magnification | 2x~240x |

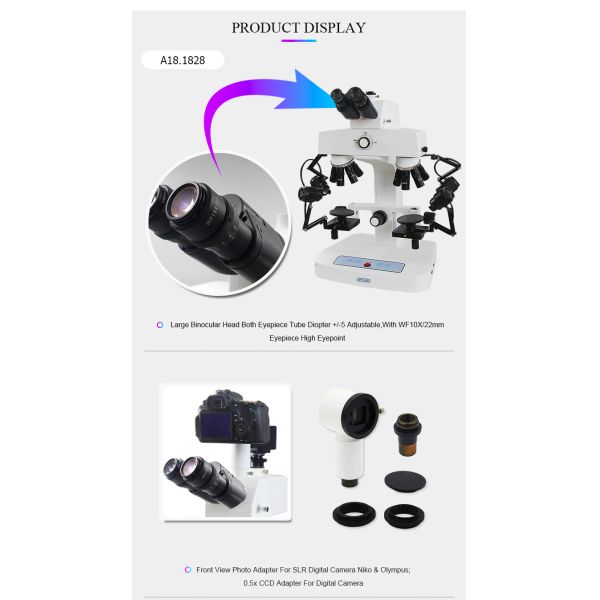

| Head | Binocular Head, 30° Incline, Interpupillary Distance 48~75mm, Diopter +/-5 Adjustable |
| Eyepiece | WF10x/22mm, High Eyepoint |
| WF20x/12mm, High Eyepoint |
| Nosepiece | 6 Hole Click Stop Nosepiece |
| Objective | LWD Infinity Plan Achromatic Objective 0.5x, 1x, 1.5x, 2x, 4x,6x |
| Auxiliary Lens 0.4x, 2.0x |
| Working Distance | 101mm |
| View Field | Dia. 2.3~62mm |
| Magnification Correcting | Magnification Correction System, With Correcting Lens |

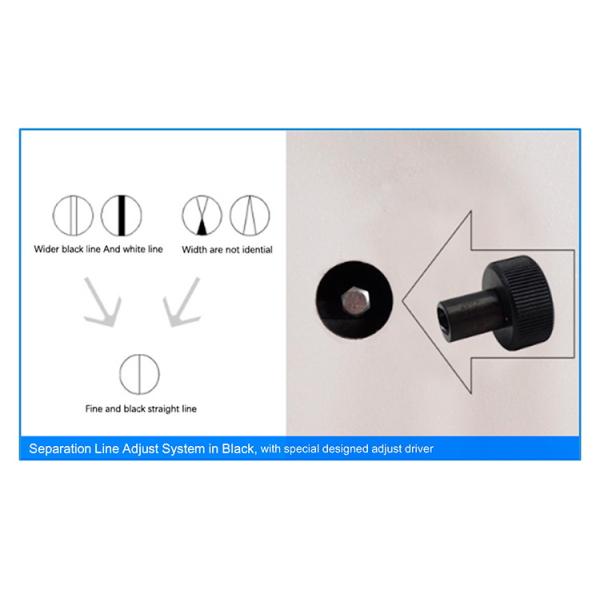

| Separation Line Adjusting | Separation Line Adjust System In Back, With Special Designed Adjust Driver |
| Working Stage | Square Manual Working Stage 90*90mm, Moving Range 54*54*54mm |
| Round Tiltable Working Stage Dia. 90mm, 0-45° Inclined, 360° Rotatable |
| Joint Left/Right Moving Range 54mm, Joint Up/Down Range 60mm |

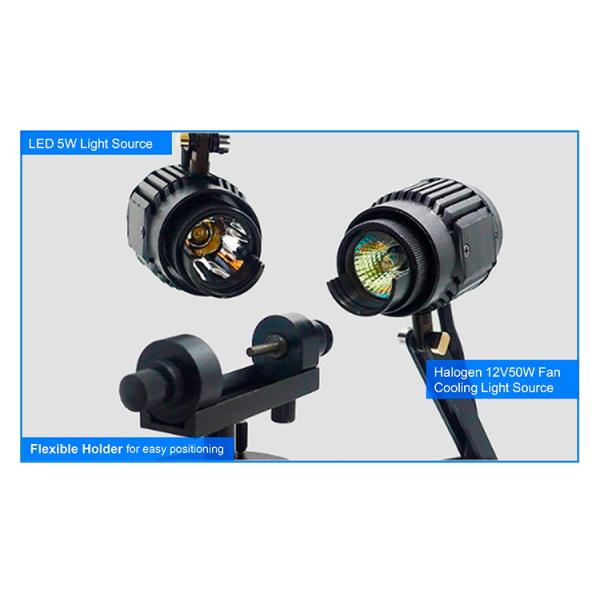

| Light Source | 12V50W Fan Cooling Strong Halogen Light, Brightness Adjustable,2pcs |
| 5W LED Cold Light, High Brightness, Brightness Adjustable,2pcs |
| Coaxial Light Lens, To Observe In Deep Hole, Or Smooth Object Surface,2pcs |
| Polarizing Light Lens, To Eliminate Flare Lights And Dazzling Lights,2pcs |
| Transmit Bottom Light,2pcs |
| Ultraviolet Light Lens,2pcs |
| Filters: Red, Blue, Yellow, Green,2pcs Each Color |
| Adapter | 0.5x CCD Adapter For Digital Camera,1pc |
| Front View Photo Adapter 2.5X For SLR Digital Camera (Nikon And Canon) |
| CCD Camera | Built-in 3.0M High Resolution Color CCD Camera, USB 2.0 Output,2048*1536 Pixels, Pixel Size 3.2*3.2μm |
| Power | 80~240V Wide Range Voltage |
| Bullet Holder | Standard Bullet Holder 2 Sets, Bullet Holder Set for all kinds of Bullet, Cartridge and other Objects |
| Dimension | Instrument Size 43*34*65cm |
| Optional Accessories |
| Light Source | 150W Cold Light Source, With Optical Fiber & Light Collector | A56.1821 |
| Software | Professional forensic image analysis software | A30.1821 |
| Bullet Holder | Motorized Bullet Holder 1 Set | A54.1813 |
| Digital Camera | 9.7'' LCD Pad Digital Camera, Android System,See A18.1828-LCD | A59.3520 |
